SLIM-Touch
Controls for Brio-I Slim fan coils
Ideal climate with a simple touch
Key features
The electronic control can provide the right conditions at any time of the day, during the night there is a super-minimum speed to guarantee the appropriate level of acoustic comfort for sleep.

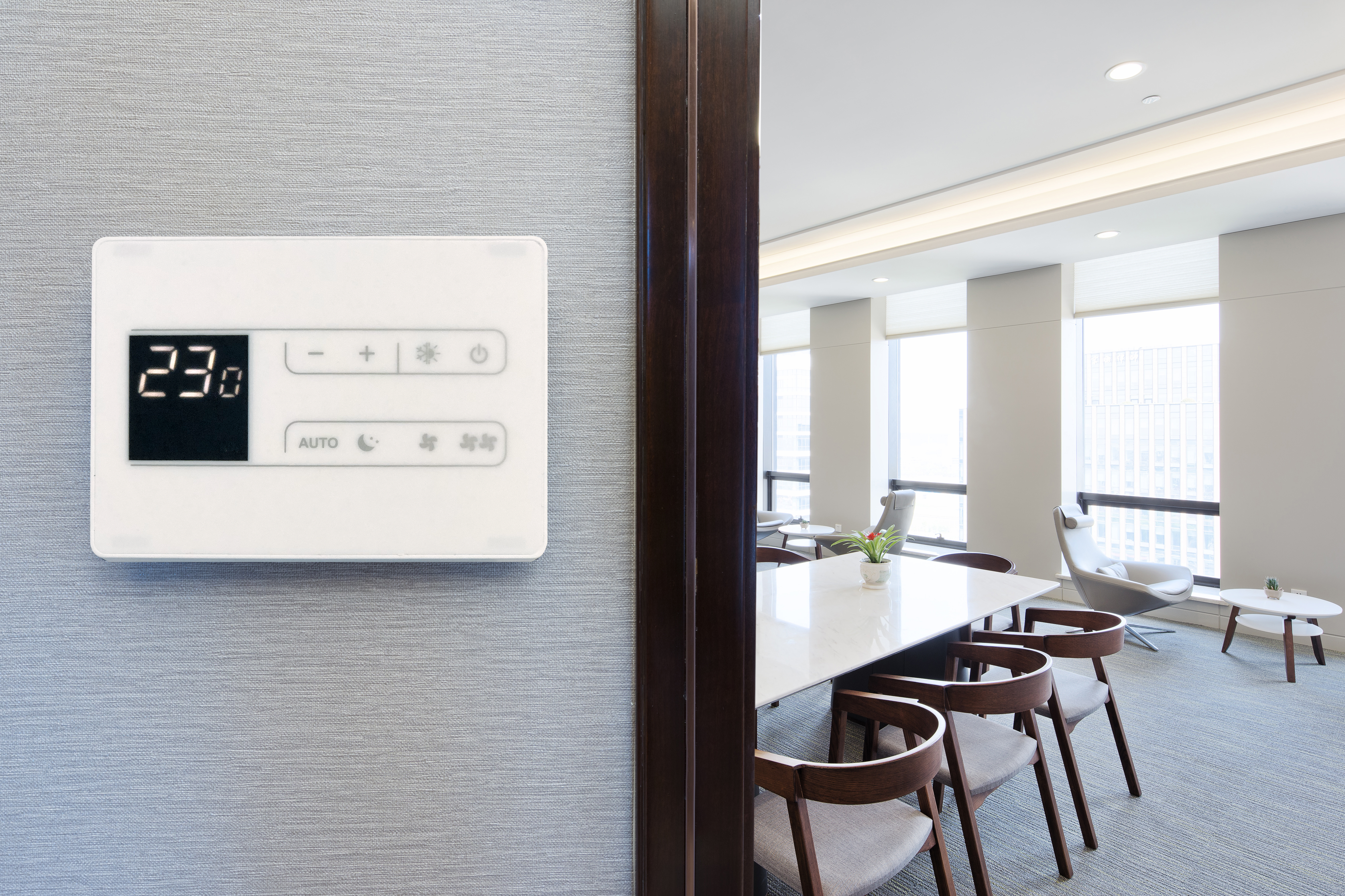

The elegant and slim touch interface is available for wall mounting installation or on-board unit mounting.
Description
FUNCTIONS
Regulation functions
Room temperature setting, fan speed (AUTO, NIGHT, MIN, MAX) and operating mode (OFF/Summer/Winter/Auto/Fan).
• Type of system: 2-pipe, 2-pipe with integrated radiant function with heating, 4-pipe
• Manual or automatic summer/winter switching
Comfort functions
• HOT START heating function with water temperature enable
• TOO COOL cooling function with water temperature enable
• Automatic speed adjustment with continuous modulation or 4-speed control
• Operating mode stored
• Automatic dimming
• Keyboard lock
Advanced functions
• Winter radiant function with fan off
• Digital input can be set as remote ON/OFF
• Digital outputs for hot and cold calls (potential-free contact)
Master/Slave function
• Centralised management of multiple fan coils through a single master unit with SLIM -Touch KPSTB or KPSTW panel.
Serial interface
• RS485 Modbus RTU serial interface, standard on KPSTB or KPSTW panel or as an accessory for KCS.M/B control; serial routing from the same control.

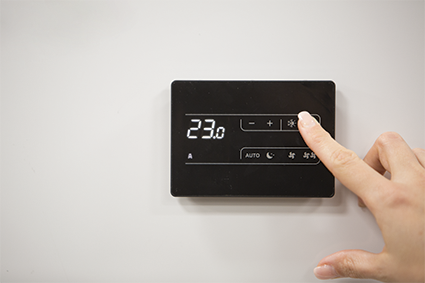

Slim-Touch KPSTB or KPSTW
panel with room temperature probe and integrated RS485 interface.
Dimensions 110x78x17,5mm - Wall mounting installations
Master/Slave Function
31 units in total
Maximum distance: 100m
