Fan coils with EC motor
COVER for BRIO-I SLIM
Installation solutions with formwork and covering panels on the wall or on the ceiling
Features
Key features
Concealed fan coil installation
Wall-flush aesthetic cover panel in white RAL 9003

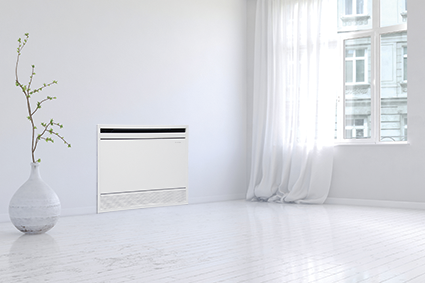

Recessed wall or false ceiling installation
Compact size, only 14 cm thick, also with radiant function.
Description
Brio-I SLIM - Versions
• IXP - Recessed horizontal/vertical unit for wall or false ceiling installation.
• IVR - Vertical only recessed unit with front radiant function, for wall formwork installation.
Models
Brio-I SLIM: 10, 20, 25, 30, 40
Construction set-ups
Type of unit
2T - Single main coil.
ACCESSORIES for Brio COVER
➔ Formwork for recessed installation (only 2-pipe systems)
➔ Wall aesthetic panel for formwork, colour matt white RAL 9003.
➔ Ceiling aesthetic panel for formwork, colour matt white RAL 9003.
➔ Telescopic delivery fitting, insulated.
➔ Wall mounted delivery nozzle made of aluminium, with a double row of adjustable fins.
CONTROLS for Brio COVER
STANDARD controls
For on board installation
➔ Electronic board in combination with 3-speed thermostats
➔ Electronic board in combination with thermostats with 0-10V analogue output
For wall mounting installation
➔ Panel with room thermostat, summer/winter switch, speed switch and ON/OFF valve control.
➔ Electronic panel with automatic summer/winter switching for 2-pipe systems.
ADVANCED controls
➔ Slim-touch wall mounted control panel, with RS485 Modbus RTU interface.
For installation on machine
➔❖ Electronic control with continuous speed modulation only when combined with a wall mounted slim-touch panel, with master/slave control up to 31 controls.
➔❖ RS485 Modbus RTU serial interface
Key:
❖ Factory fitted
➔ Supplied separately
Technical data
| BRIO-I SLIM – IXP-IVR | 10 | 20 | 25 | 30 | 40 | ||||
| ❶ | Total cooling capacity [EN1397] | MAX | kW | E | 0,98 | 1,81 | 2,87 | 3,31 | 3,94 |
| MED | kW | E | 0,75 | 1,35 | 2,16 | 2,43 | 2,9 | ||
| MIN | kW | E | 0,38 | 0,73 | 1,14 | 1,27 | 1,46 | ||
| ❷ | Heating capacity (45°C) [EN1397] | MAX | kW | E | 1,13 | 2,03 | 3,19 | 3,75 | 4,46 |
| MED | kW | E | 0,81 | 1,48 | 2,32 | 2,75 | 3,11 | ||
| MIN | kW | E | 0,57 | 0,75 | 0,92 | 1,48 | 1,79 | ||
| ❸ | Heating capacity (50°C) | MAX | kW | E | 1,39 | 2,46 | 3,89 | 4,51 | 5,43 |
| MED | kW | E | 1,0 | 1,75 | 2,78 | 3,23 | 3,73 | ||
| MIN | kW | E | 0,7 | 0,84 | 1,04 | 1,56 | 1,87 | ||
| ❹ | Heating capacity (70°C) [EN1397] | MAX | kW | 2,27 | 4,08 | 6,41 | 7,54 | 9,17 | |
| MED | kW | 1,63 | 2,98 | 4,67 | 5,52 | 6,42 | |||
| MIN | kW | 1,16 | 1,54 | 1,84 | 2,97 | 3,7 | |||
| ❸ | Heating capacity only radiant function (50°C) MVR-IVR version | kW | 0,32 | 0,38 | 0,46 | 0,55 | 0,66 | ||
| ❹ | Heating capacity only radiant function (70°C) MVR-IVR version | kW | 0,54 | 0,67 | 0,78 | 0,92 | 1,08 | ||
| Air flow speed | MAX | m³/h | 162 | 320 | 461 | 576 | 648 | ||
| MED | m³/h | 113 | 252 | 367 | 453 | 494 | |||
| MIN | m³/h | 55 | 155 | 248 | 370 | 426 | |||
| Sound power | MAX | dB(A) | E | 50 | 51 | 52 | 54 | 54 | |
| MED | dB(A) | E | 42 | 43 | 45 | 46 | 46 | ||
| MIN | dB(A) | E | 32 | 33 | 34 | 35 | 35 | ||
| ❻ | Sound pressure | MAX | dB(A) | 41 | 42 | 43 | 45 | 45 | |
| MED | dB(A) | 33 | 34 | 36 | 37 | 37 | |||
| MIN | dB(A) | 23 | 24 | 25 | 26 | 26 | |||
| Absorbed power | MAX | W | E | 11 | 19 | 20 | 28 | 35 | |
| MED | W | E | 9 | 10 | 13 | 15 | 17 | ||
| MIN | W | E | 7 | 7 | 7 | 8 | 8 | ||
| Electrical supply | V-ph-Hz | 230-1-50 | 230-1-50 | 230-1-50 | 230-1-50 | 230-1-50 | |||
| DIMENSIONS AND WEIGHT | 10 | 20 | 25 | 30 | 40 | ||||
| W – Width IXP-IVR – 2T | mm | 525 | 725 | 925 | 1125 | 1325 | |||
| H – Height IXP-IVR – 2T | mm | 590 | 590 | 590 | 590 | 590 | |||
| D – Depth IXP-IVR- 2T | mm | 126 | 126 | 126 | 126 | 126 | |||
| Weight IXP-IVR – 2T | kg | 9 | 12 | 15 | 18 | 21 | |||
| COVER for BRIO-I Slim – 2T | 10 | 20 | 25 | 30 | 40 | ||||
| KCASE – 2T formwork | WxHxD | mm | 715x725x142 | 915x725x142 | 1115x725x142 | 1315x725x142 | 1515x725x142 | ||
| KCASE – 2T formwork | Weight | kg | 5 | 6 | 7 | 8 | 9 | ||
| KPCASEV – KPCASEO – 2T panel | WxHxD | mm | 775x755x10 | 975x755x10 | 1175x755x10 | 1375x755x10 | 1575x755x10 | ||
| KPCASEV – KPCASEO – 2T panel | Weight | kg | 3 | 3,5 | 4 | 4,5 | 5 | ||
| KGMD – 2T delivery nozzle | WxHxD | mm | 335x130x6 | 535x130x6 | 735x130x6 | 935x130x6 | 1135x130x6 | ||
- Data at the following conditions:
- ❶ Air: 27°C D.B.; 19°C W.B. – Water: 7/12°C.
- ❷ Air: 20°C – Water: 45/40°C.
- ❸ Air: 20°C – Water: 50°C, flow rate as in cooling.
- ❹ Air: 20°C – Water: 70/60°C.
- ❻ For room volume equal to 100 m³ and reverberation time = 0.5 sec.
- E Eurovent certified performance.
